5” Bore Space BBC Engine

5” Bore Space BBC Engine (Brodix / Hoonigan / Dry Sump) – STL File (Digital Download)

🔧 Product Overview

The 5” Bore Space Big Block Chevy STL file is intended for builders and fabricators who need a 3D reference model for mock-ups, layout planning, and visualization.

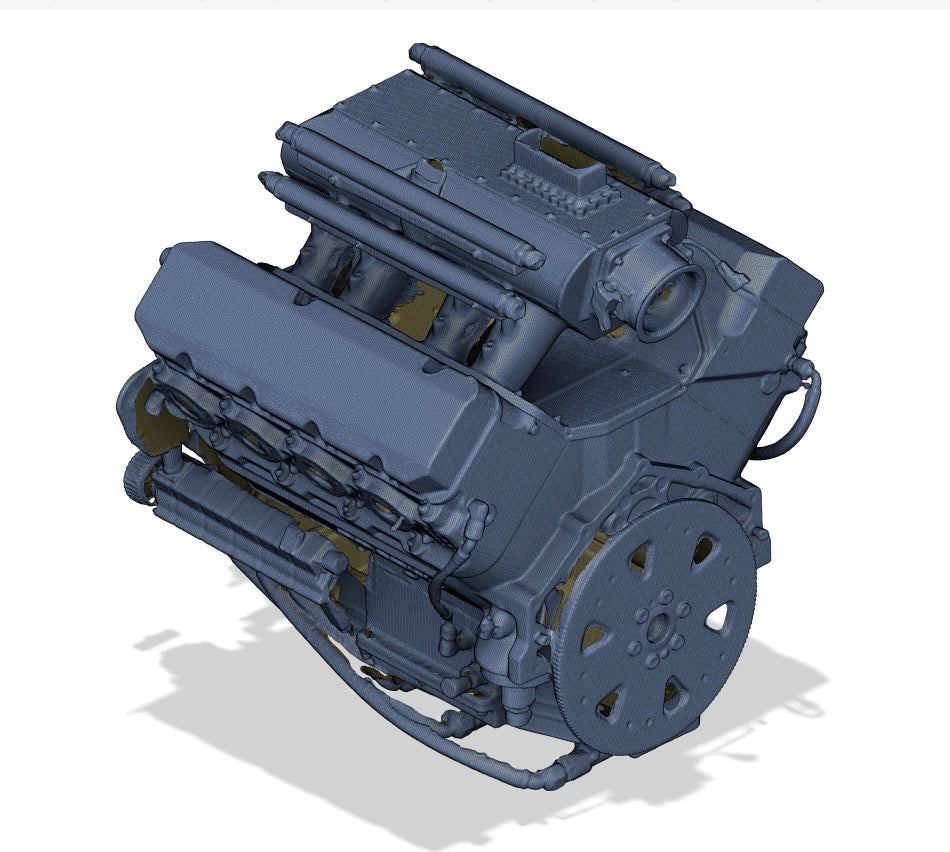

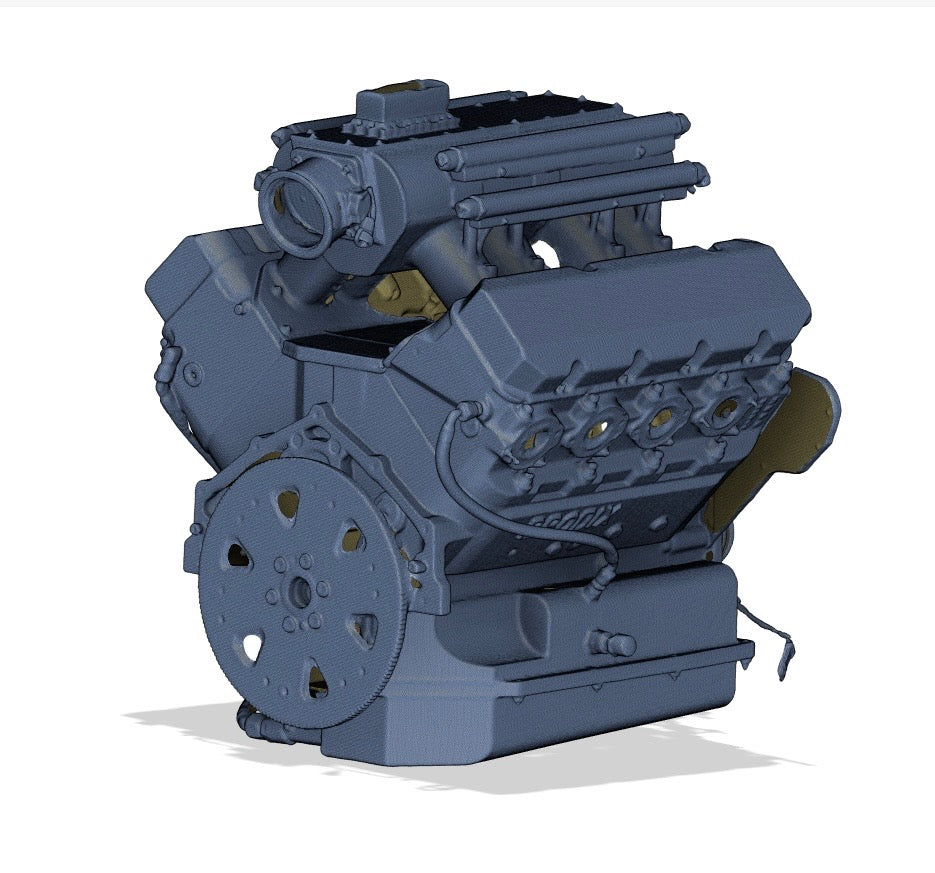

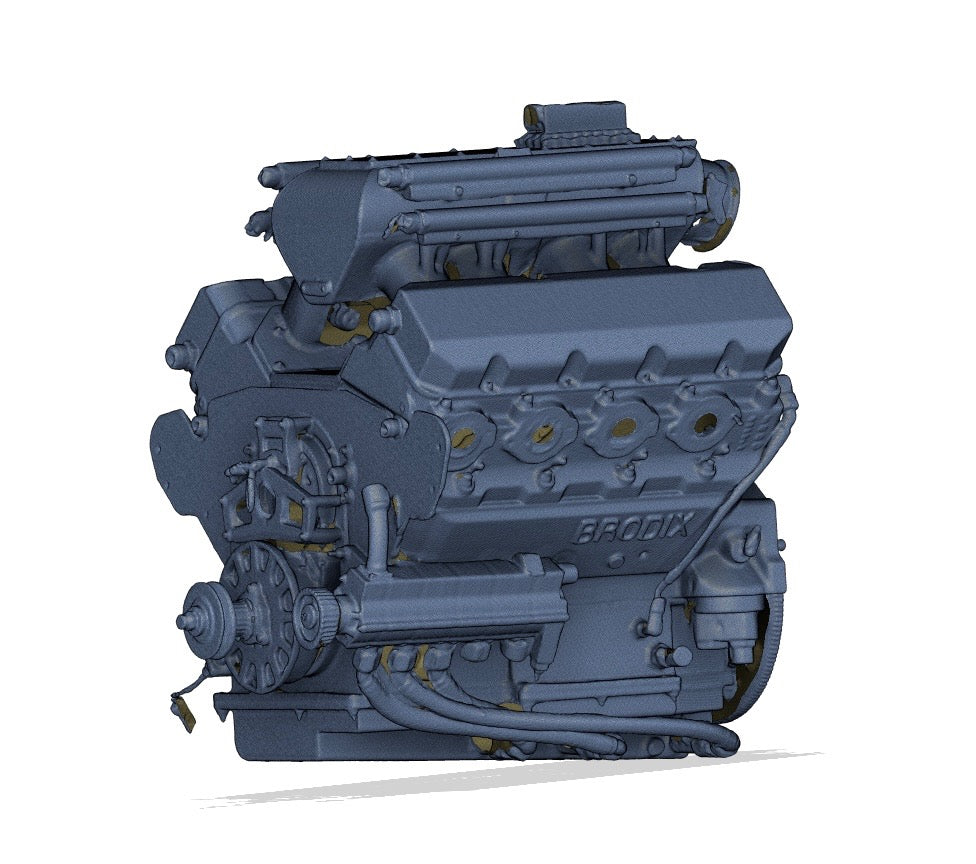

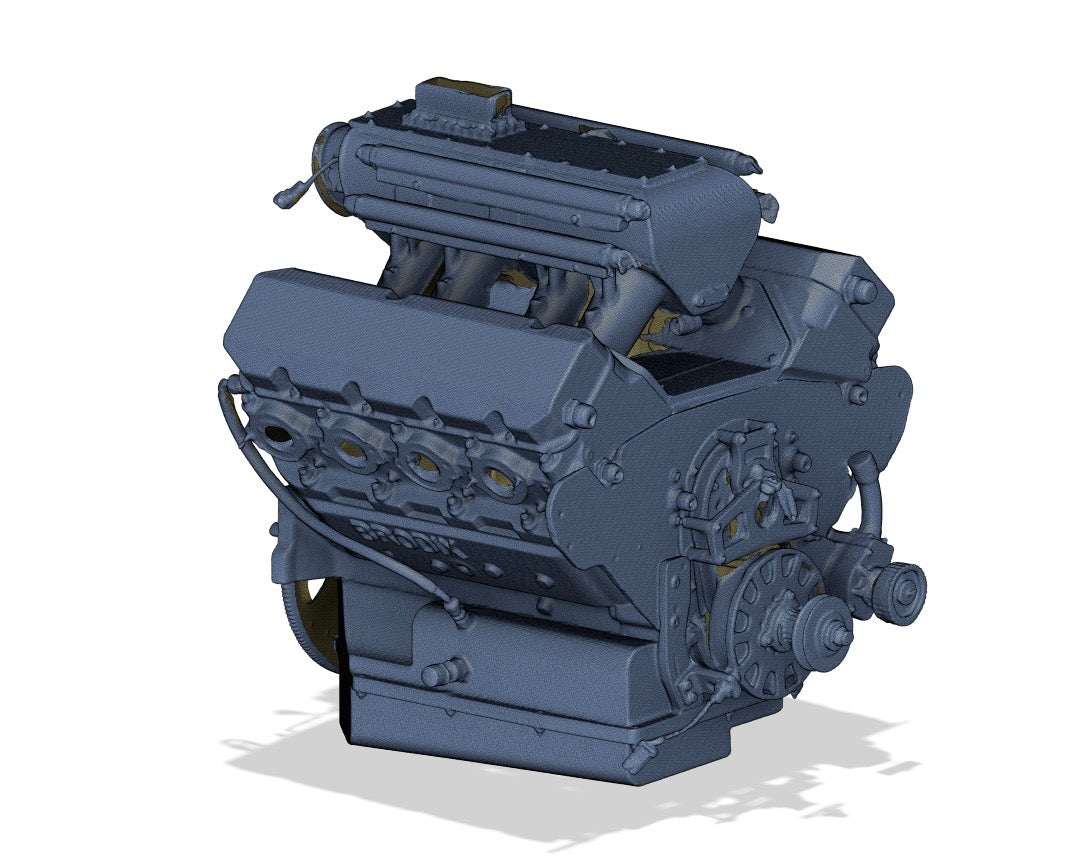

This digital file represents a 5” bore space BBC engine configuration featuring a Brodix block and heads, Hoonigan intake, burst panel, Wilson throttle body, dry sump oil pan and pump, billet flywheel, front plate, and dual fuel rails, making it ideal for engine bay planning, intake and accessory clearance checks, and high-performance fabrication mock-ups.

📂 What’s Included

✔ STL file for 5” Bore Space BBC Engine (Brodix / Hoonigan / Dry Sump)
✔ High-quality, ready-to-use 3D reference model
✔ Nickky Bobby LLC STL Digital License PDF
✔ Instant download after checkout

📐 Features

• 5” bore space Big Block Chevy reference engine model
• Modeled with Brodix engine block and cylinder heads
• Includes Hoonigan intake manifold
• Features burst panel and Wilson throttle body
• Configured with dual fuel rails
• Includes dry sump oil pan and pump
• Modeled with billet flywheel and front plate
• Clean geometry for easy slicing and printing
• Optimized for scale reference and mock-up use
• Ideal for engine bay layout, intake clearance, accessory planning, and fabrication mock-ups

📝 Notes

• File format: STL
• Digital download only — no physical item will be shipped
• Ensure your slicer or CAD software supports STL files before purchasing
• Engine configuration may differ from other BBC setups
• Model is intended for reference and mock-up use only

🔒 License (Read Before Buying)

This STL file is licensed for private use only.
By purchasing, you agree NOT to:

• Share, upload, or redistribute the file

• Send the file to others

• Modify and reshare the file

• Claim the design as your own

All digital files remain the property of Nickky Bobby LLC.
Digital products are non-refundable.
